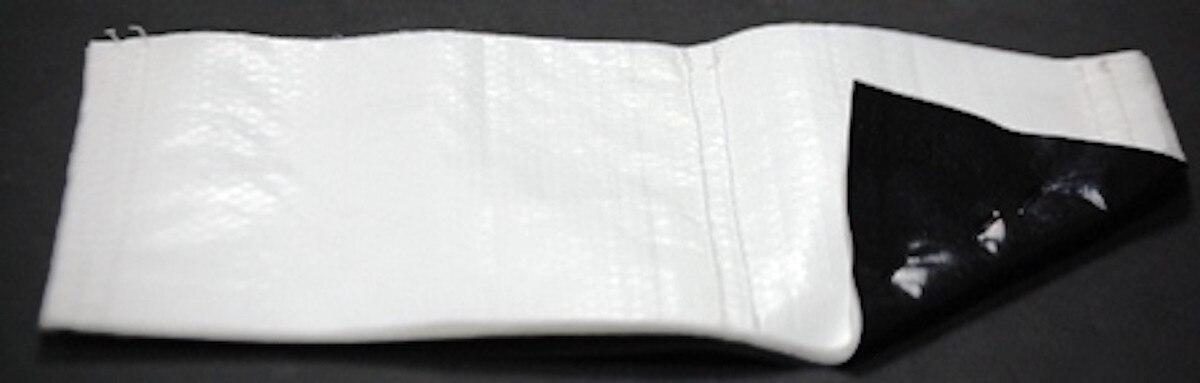

Curtain-3' Black/White 7-Layer Insulated

AMT 7-LAYER INSULATED POULTRY CURTAIN
TYPICAL SPECIFICATIONS

2 Outer Layers:                          1 - 5.8 oz White Poly-Plus                                                            Curtain 10 x 10                                                                   1- 4.4 oz Clear Poly-Plus                                                              Curtain 10 x 10

4 Interior Layers :                      High Tech White Non-                                                          Woven Insulating                                                                   Materials

1 Inner Layer:                             1 - 4.4 oz Clear Poly-Plus                                                              Vapor Barrier

Total Weight:                             Approx. 22-26 oz/sq yd

Thickness:                                          Approx. 95 mils

R Value:                                  Estimated at approx. R3**

Light Transmission:            Allows approx. 7% diffused                                                   light/ $3 shade

** Testing is based on ASTM method D-1518 for Thermal Transmittance of Textile Materials. Tests were done on the Kawabata KES-F7 Thermo-Lab II module. This measures the 1r which is the thermal transmittance through fabric into air. (R-value must be tested with at least a 1" thickness as this is not applicable to this material. R-value can only be calculated through estimates based on these tests).
