Mylar Splicing Tape - 3"x 55 yd

QuantityPrice
1 – 7$107.03
8 +$101.67
SKU: 64036
SKU: 64036
Item weight: 1.7
Standard Package: 55 yard roll
Sale Units: Rolls
For splicing Mylar Egg Belt

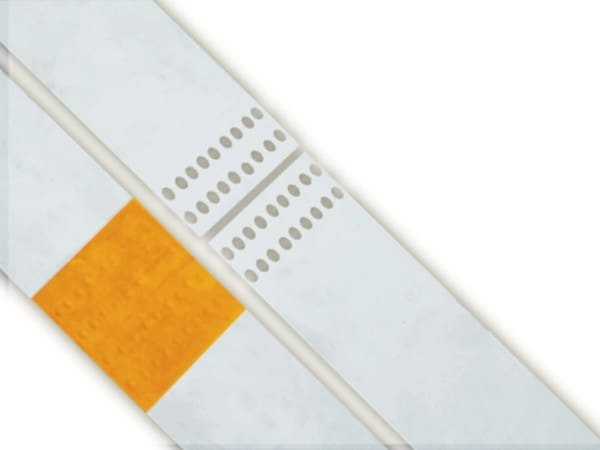

Splicing Example:

  • Width:  3"
  • Thickness: 2 mils
  • Adhesive:  Acrylic Thermosetting
  • Color:  Yellow
  • Peel adhesion:  N/19mm = 14.5
  • Tensile strength  N/19mm = 210
  • Elongation%:  110
  • Temperature Class:  B (130 Degrees C)
  • Breakdown Voltage:  8.0
  • Electrolytic corrosion factor:  1.00
  • Dielectric Strength:  6500 Volts
  • Corrosion Factor:  1.0
  • UL Recognized Component:  File #E-52363 (130 C)
  • Flammability Rating:  Passed UL 510 Test
