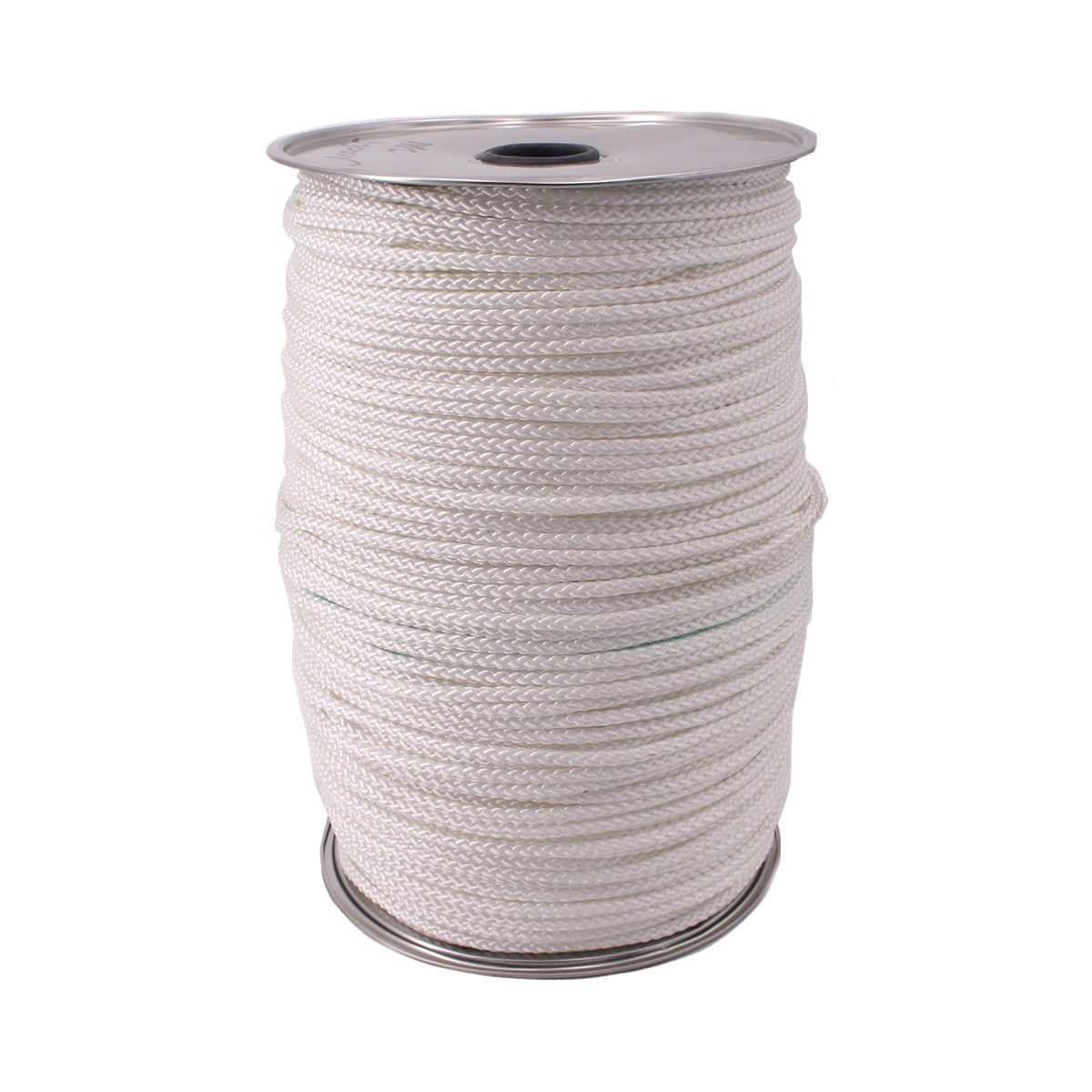

Diamond Braid Low Stretch Rope - 3/16" X 1000'

QuantityPrice
1 – 3$57.35
4 – 47$52.13
48 – 95$50.03
96 +$48.75
SKU: 12062-1000
SKU: 12062-1000
Item weight: 13
Standard Package: 4 Rolls
Sale Units: Rolls
• Made with 100% high tenacity polyester
• Less stretch than cheaper nylon cord
• Durable metal spool
• Wax coating keeps ends from fraying
• For winching feeders & nests in our
AMT Cable Free Winching System


3/16 (#6) Diamond Braid Low Stretch Cord DATA SHEET


Description

Coated 3/16” 8 carrier Diamond Braid Polyester with polyester core

Diameter

3/16“ (.187”)

Construction

High tenacity filament polyester cover, with high tenacity polyester filament core (twisted or untwisted)

Yield

Aprrox. 85 ft/lb, 11.7 lbs/1000 ft.

Break Strength

850 lb. target min (1150 lb. lab results on 5/12/2011)

Plicks/Inch

6 (+/- 1)

Elongation

3.1% @ 100 lbs., 7.57% @ 200 lbs., 11.8% @ 300 lbs., and 44.8% @ breaking point (1150 lbs.)
