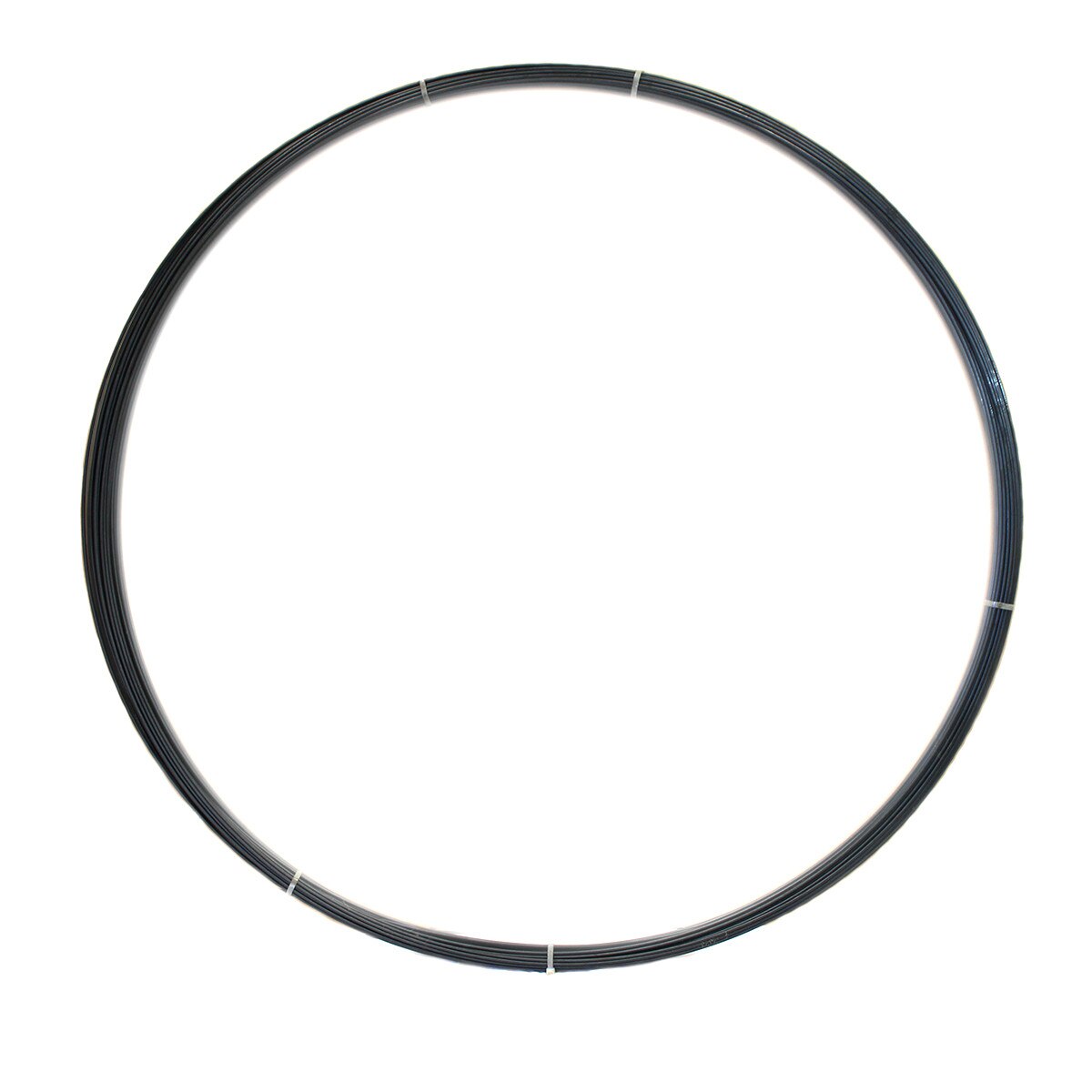

Suspension Rod - 3/16" x 680'

SKU: AMT17061-0680
SKU: 17061-0680
Item weight: 63.45
Standard Package: 680' Roll
Sale Units: Rolls
  • Made from 3/16" spring wire
  • Will not stretch like cable and smaller high tensile wire
  • Use with our #17020 Pulley Bracket/Sprocket Assembly for flawless control of ventilation systems
  • Recommended by The University of Georgia


  • Suspension Rod


    AMT Part No.: 17061

    Technical Description: .1875" Class 2 Tempered Wire

    Diameter: Min = .1855, Max = .1895 (Actual Test = .1865)

    Load: 6218 lbs to 6302 lbs.

    Tensile Strength: Min = 222,000 lbs., Max = 240,800 lbs. (Actual Test = 231,186 lbs.)

    Length: Stock Rolls of 390’, 450', 490’ & 570’ (Custom lengths available)

    Heat: 153446-GA

    Chemistry: C=O.61, MN=0.91, P=0.015, S=0.015, SI=0.18, CU-0.13, NI=0.06, CR=0.06, MO-0.010, V=0.005, SN=0.012, AL=0.005, TI=0.001, N2=0.006

    Packaging: 60 inch Diameter Coil
