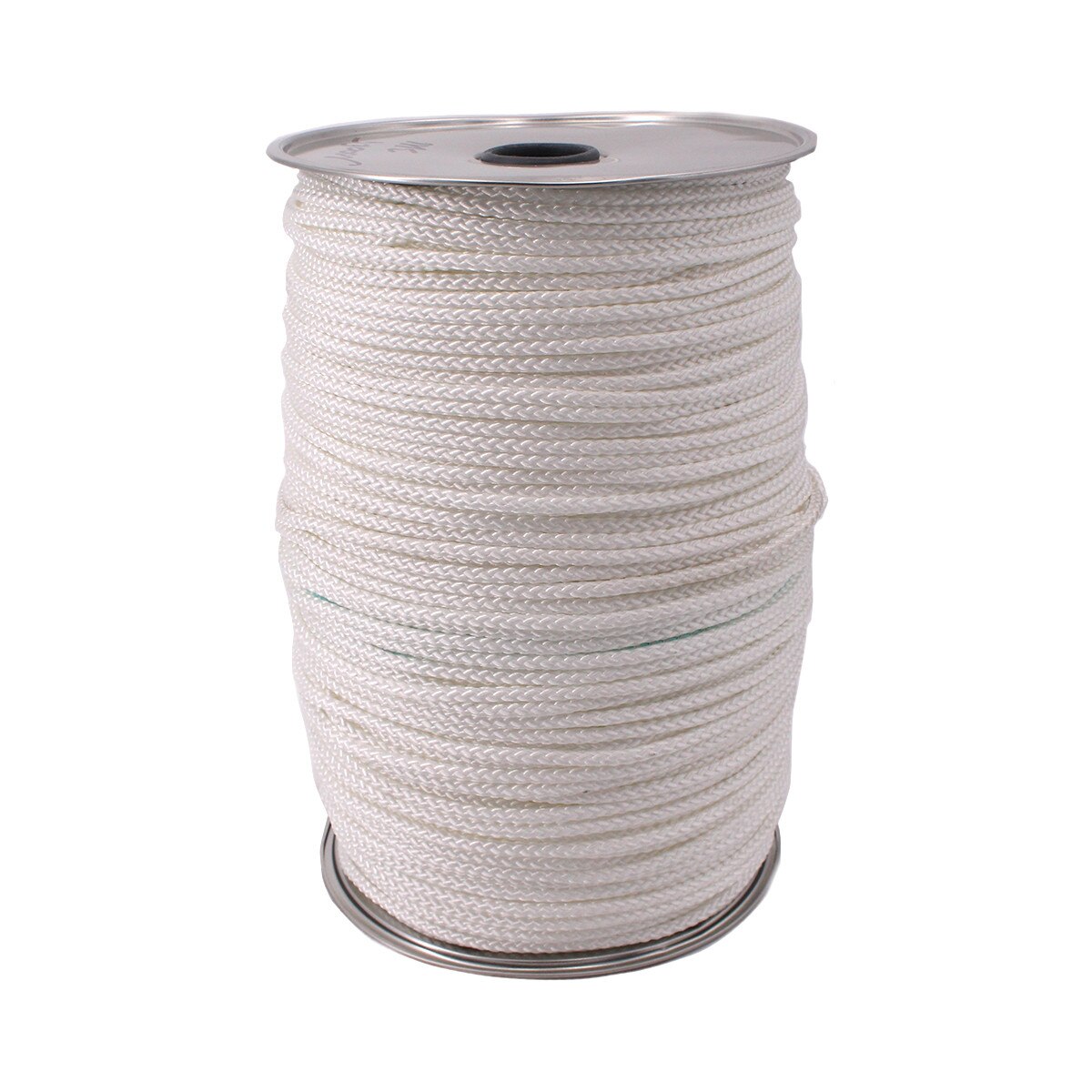

Diamond Braid Rope - 7/32"(#7) X 1000' (Made in the USA)
•Made in the USA
Made With 100% Polyester
• Less Stretch Than Cheaper Nylon Cord
• Durable Spool
• Use for low stretch winching applications of heavier objects
Made With 100% Polyester
• Less Stretch Than Cheaper Nylon Cord
• Durable Spool
• Use for low stretch winching applications of heavier objects
7/32 (#7) Diamond Braid Cord Datasheet
Description | Coated 7/32” 8 carrier Diamond Braid Polyester with polyester core |
Diameter | 7/32“ (.219”) |
Construction | High tenacity filament polyester cover, with high tenacity polyester filament core (twisted or untwisted) |
Yield | Aprrox. 72 ft/lb, 13.9 lbs/1000 ft. |
Break Strength | 1300 lb. target min (1430 lb. lab results on 12/19/2002) |
Plicks/Inch | 6.5 (+/- 1) |
Elongation | 6.85% @ 100 lbs., 12.5% @ 200 lbs., 17.7% @ 300 lbs., and 42.5% @ breaking point (945 lbs.) |
