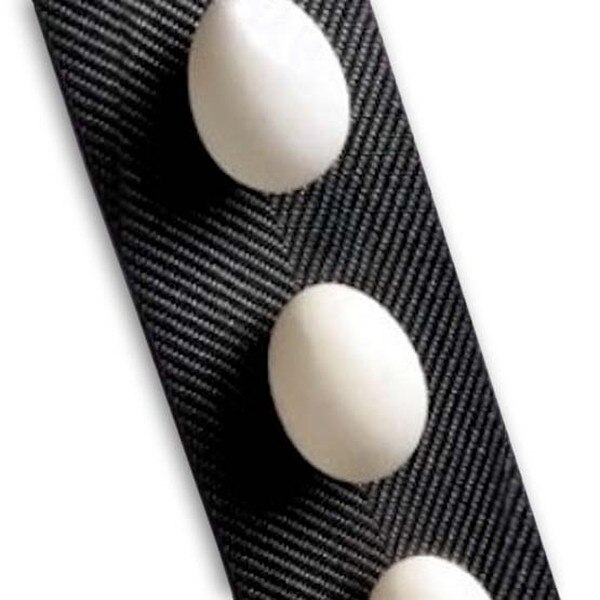

XF966 Gray Egg Belt - 3" x 1040'
• For older Diamond Automation reverse cage
• Sold in full rolls only
Roll Size - 3" x 1040' ( 77mm x 325m)
XF966 3” EGG BELT DATASHEET
| Yarn Properties | UV Treated, Anti-Static, Washable |
| Ply | 1 |
| Tensile Strength | 3400 lbs (4” width) |
| Elongation | 5% @ 500 lbs & 15% @ break point |
| Shrinkage: | 1/8” @ 500 lbs. (4” width) |
| Nominal Thickness | .063 in |
| Weight | .01 lbs/ft per inch of width |
| Color | Dark Gray |
| Construction | Herringbone weave, polypropylene warp (85% of total weight), polyethylene weft (15% of total weight) |
