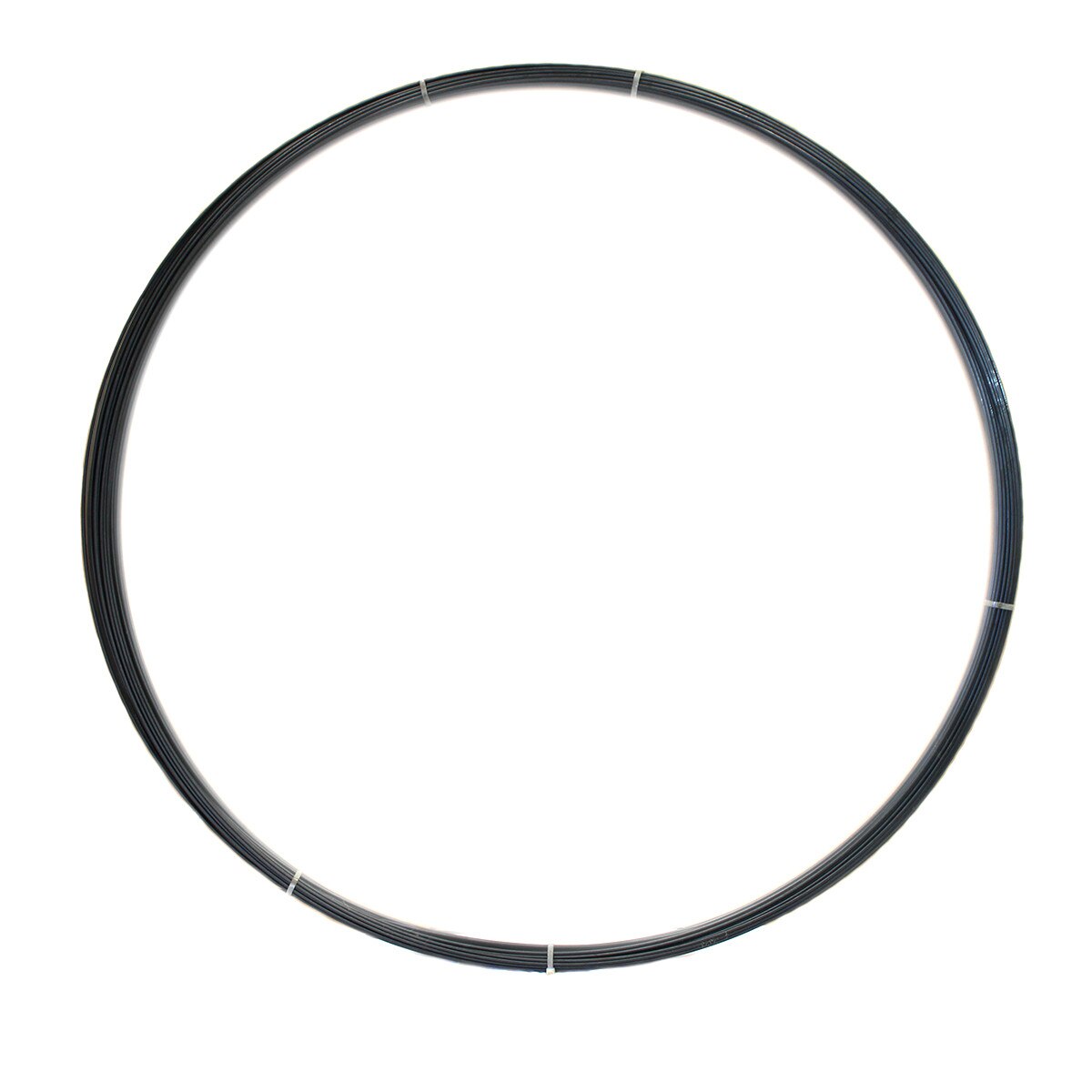

Suspension Rod - 1/8" x 490'

SKU: AMT17060-0490
SKU: 17060-0490
Item weight: 20.5699991
Standard Package: 490' Roll
Sale Units: 490' Rolls
  • Made from 1/8" spring wire
  • Use to replace conventional main cable on drinker lines
  • Will not stretch like cable and high tensile wire
  • Use with our #17020 Pulley Bracket/Sprocket Assembly for flawless control of ventilation systems
  • Recommended by The University of Georgia

  • Suspension Rod


    AMT Part No.: 17060

    Technical Description: .125" Class 1 Tempered Wire

    Diameter: Min = .123 Max = .127 (Actual Test = .125)

    Break Load: 2594 lbs to 2660 lbs.

    Tensile Strength: Min = 222,000 lbs., Max = 224,0 lbs. (Actual Test = 224,668 lbs.)

    Length: Stock Rolls of 390’, 490’ & 590’ (Custom lengths available)

    Heat: SA31273

    Chemistry: C=O.72, MN=0.68, P=0.016, S=0.004, SI=0.21, CU-0.13, NI=0.06, CR=0.06, MO-0.010, V=0.005, SN=0.012, AL=0.005, TI=0.001, N2=0.006
