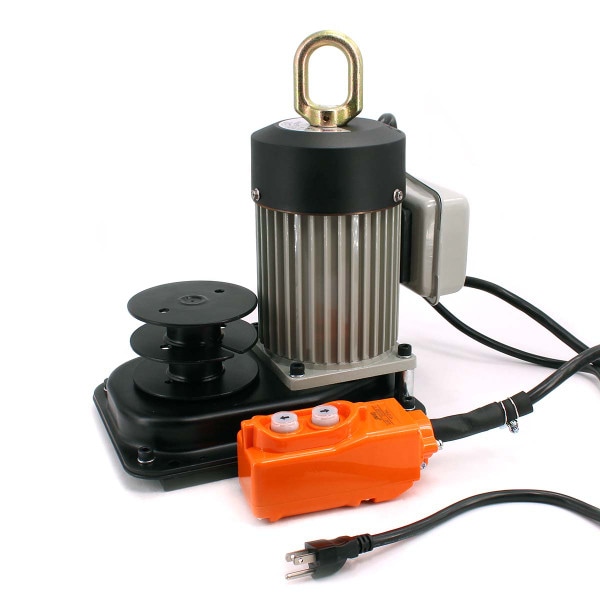

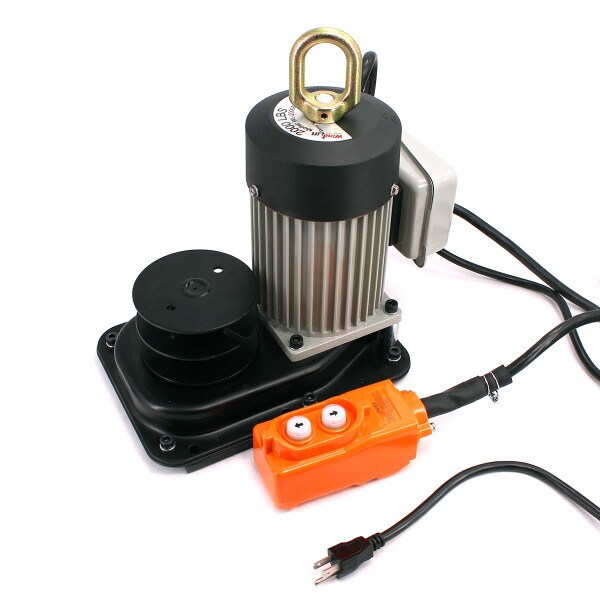

WindLift 2000 Electric Ceiling Winch Please log in to see price or purchase this item Quantity discounts available QuantityPrice SKU: 24021 SKU: 24021Item weight: 42 Standard Package: 1Sale Units: Each Description 2000 lb. rated capacity based on the first layer of cable or strap around the drum. Additional layers reduce capacity.New manual override option0.33 H... Specifications 1670 RPM net motor RPM, and drum RPM of 6.16Lift speed approximately 3.75 feet per minute at the drumVoltage: 110-115Amperage: 7 at full loadWeight 42... Additional Information 24051 Wiring Diagram DescriptionSpecificationsAdditional InformationBack2000 lb. rated capacity based on the first layer of cable or strap around the drum. Additional layers reduce capacity.New manual override option0.33 HP motorBack1670 RPM net motor RPM, and drum RPM of 6.16Lift speed approximately 3.75 feet per minute at the drumVoltage: 110-115Amperage: 7 at full loadWeight 42 lbs.Drum ID: 1.88" - OD 4 1/2"9' power cord & 9' controller cordHolds approximately 134' (67' per side) of 1/8" cableRecommended 2:1 double-back for loads exceeding 1000lbs.Back24051 Wiring Diagram
