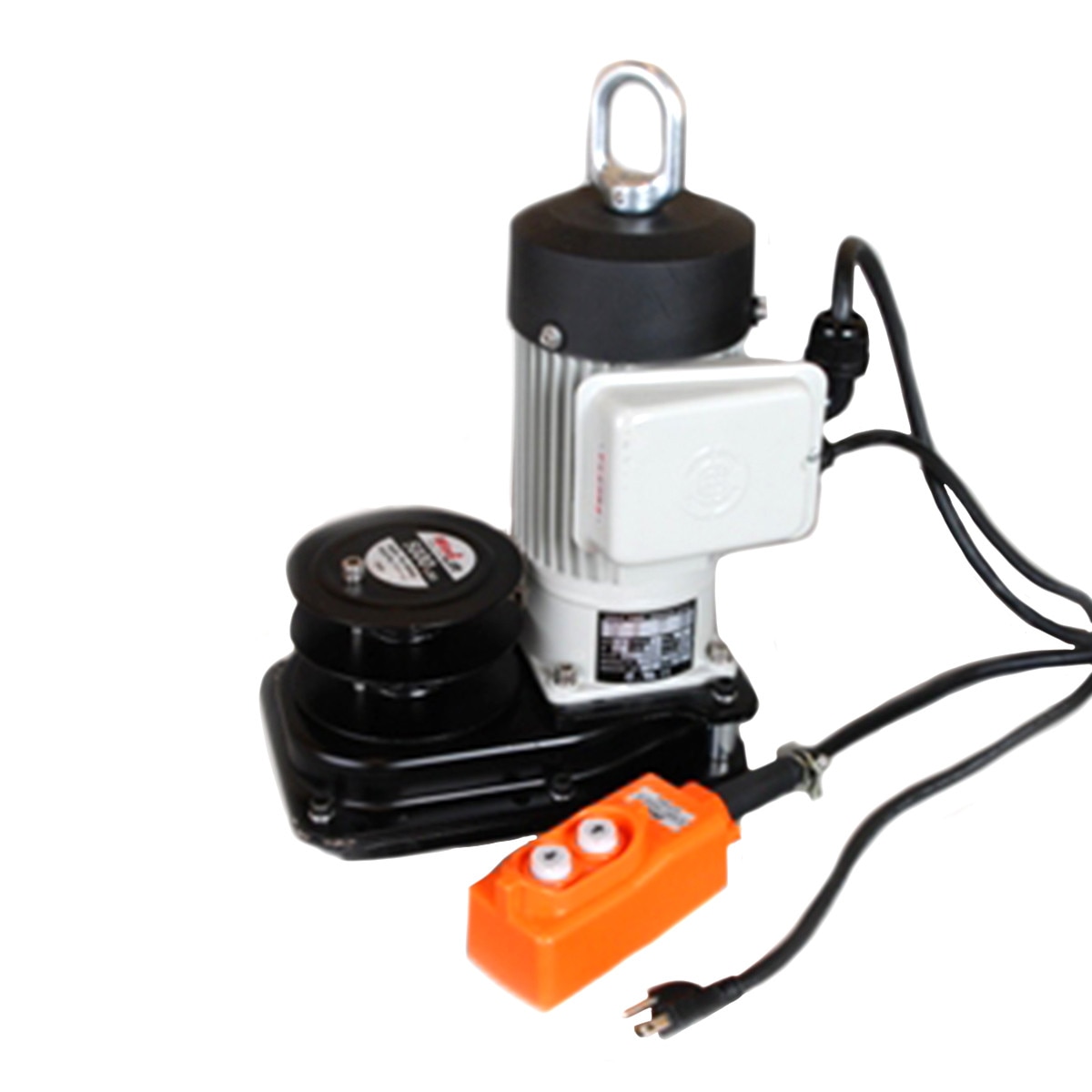

Winch-WindLift 5000 lb. Electric

SKU: 24051
SKU: 24051
Item weight: 55
Standard Package: 1
Sale Units: Each
  • Built with the heart of our reliable 5000 manual winch
  • Pre-wired with motor and controller for easy installation
  • Built to withstand harsh conditions in poultry, turkey and swine buildings
  • Brake motor for sure and safe stop
  • No assembly required
  • Can use winch slings, strap kits, or cable
  • Install Winch, plug it in, press up or down - Easy as AMT

  • *Please note this winch is designed to pull in two directions.  Pulling in one direction voids the warranty. Please see our Cable and Winching Guidelines page for more information.

  • WindLift 5000 lb. Electric Ceiling Winch Specs

    Motor:3/4 HP
    RPM:161670 RPM motor with a 6/1 reduction for a net motor RPM of 278 and drum RPM of 3.09
    Lift Speed:Approximately 2 feet per minute at the drum2228 lbs.
    Amperage7 at full load
    Weight:42 lbs
    Drum ID:2” - OD 5 1/2”
    • 9' power cord & 9' controller cord
    • Holds approximately 64' of 3/16" cable
    • Recommended 2:1 double-back for loads exceeding 2500lbs.
    • 5000 lb. rated capacity based on the first layer of cable or strap around the drum.  Additional layers reduce capacity.
    • New manual override option
