Curtain Minder Kit (Includes CM 6000, WK 1510, and B1250)

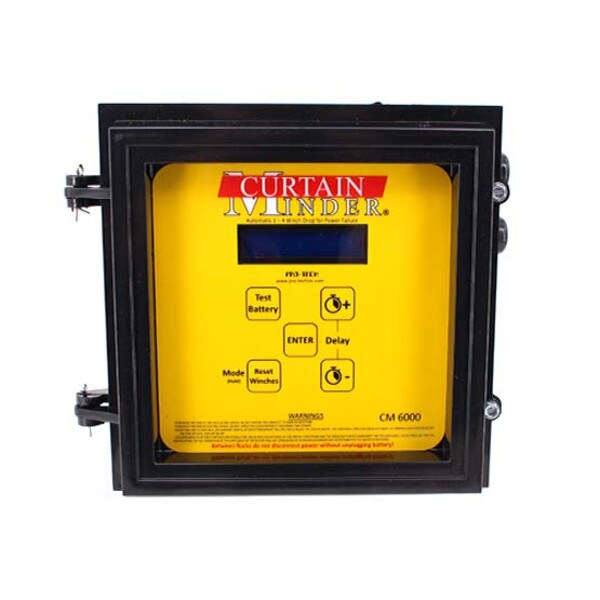

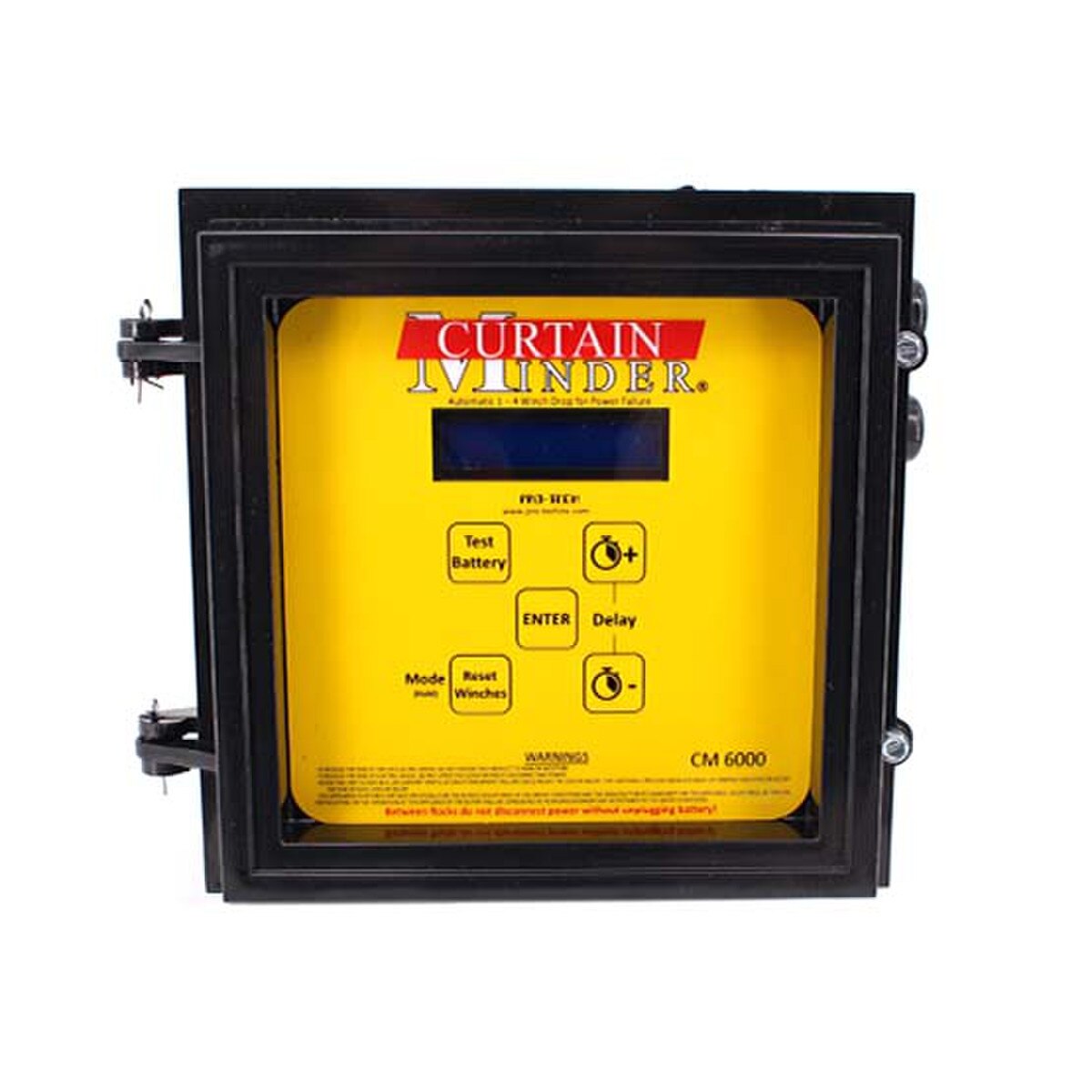

The CM 6000 is a curtain emergency ventilation control for tunnel and conventional poultry rearing houses and confinement buildings with curtains or fall-out panels. Two buttons labeled with a digital screen on the front of the Curtain-Minder control the delay time for releasing the curtain winches. The delay is adjustable between ten seconds and fifteen minutes. Ten seconds or near-ten allows the operator to test the systems and the curtain winching system quickly. Ten minutes or more may be practical for young poultry and livestock, and other sizes under some extreme weather conditions. The time between ten seconds and fifteen minutes is used to provide protection while ignoring local electrical problems. The adjustment also provides the operator the ability to match the transfer time on an automatic standby generator.

• Reed Switch Mode and Basic Mode
• 120/240 Volts AC
• Digital Display with English/Spanish
• Adjustable Delay 10 seconds to 15 minutes
• Controls up to 4 winches
• Monitors Low and No AC Power
• Alarm Minder Output
• Temp Minder Power Supply
• Reliable, Easy to Install and Set up

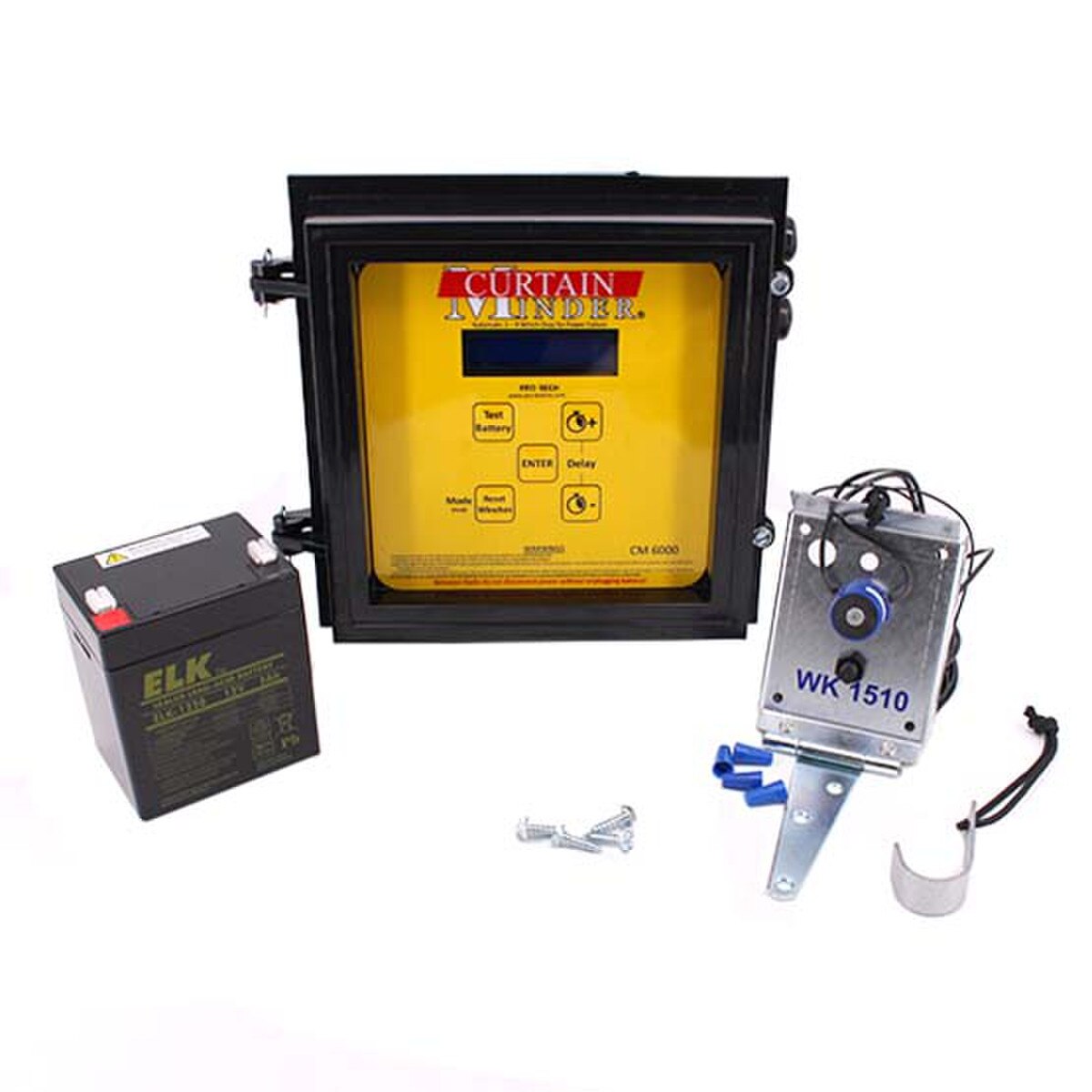

Each kit contains CM 6000, WK1510 and B1250
