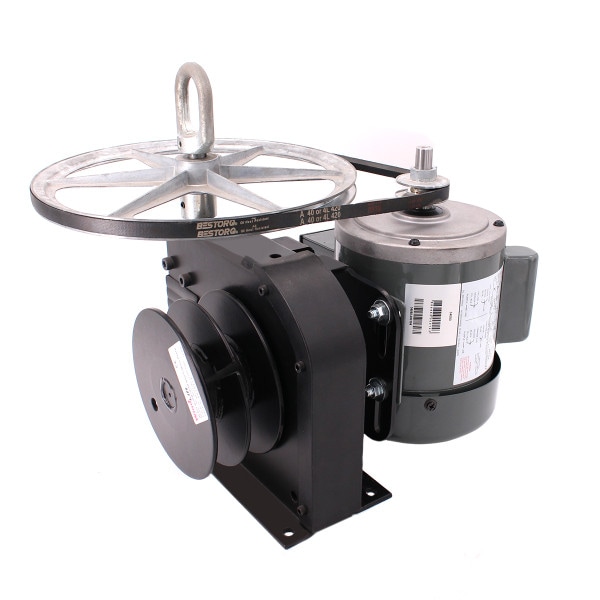

Winch-WindLift 4800 lb. Motor Ready With Pulleys, Belt & 1 HP Prime Motor
WindLift 4800lb. Motor Ready
(Includes Pulleys, Belt, & 1 HP Prime Motor)
• 4800lb. rated capacity
• 3200lb. working load (1600lbs. pulling opposite directions)
• Trouble-free worm gear design
• Divided reel
• 65:1 gear ratio
• Includes pulleys, belt & 1.0 HP Leeson Motor
• Optional strap kit available for systems of 300' or less
• Use cable with double back pulleys for systems longer than 300'
• 2:1 Double-back recommended for loads that exceed 3200lbs.
WindLift 4800 lb. Motor Ready Ceiling Winch
Motor Size | Weight capacity | |
1st layer of cable/strap | Last layer of cable/strap | |
1hp | 4800 lbs | 2228 lbs |
3/4 hp | 3600 lbs | 1671 lbs |
1/2 hp | 2400 lbs | 1114 lbs |
