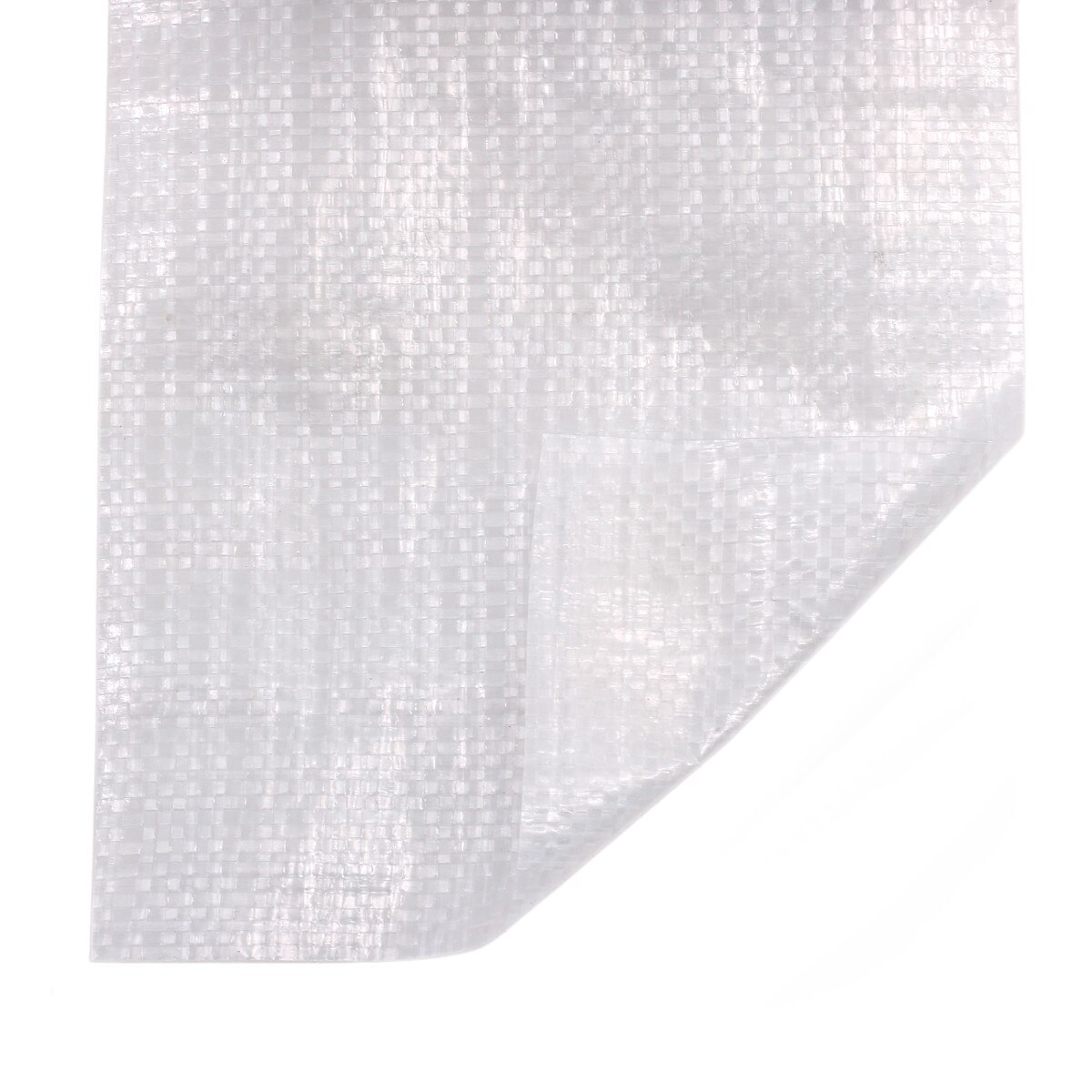

Curtain - 18" x 600' Clear 5.3 oz. Single Hem
DATA SHEET
Count: 12 x 12 tapes/inch
Weight: 5.3 ounces per square yard (164 grams)
Tensile Strength: Warp – 194.8 lbs. ASTM D751(Meth. A) (Grab Method)
Weft – 188.2 lbs
Tear Strength: Warp – 41.3 lbs. ASTM D4533 (Meth. B) (Tongue Method)
Weft – 42.1 lbs.
Mullen Burst: 372 p.s.i. ASTM D751
Coating Thickness: 2 mil average each side
Overall Thickness: 9 mil average
Scrim Type: Clear Tapes, UV stabilized
Color: Clear
Accelerated More than 80% strength ASTM G53-84
Weathering/U.V.: retension after 2000 hours
(Q.U.V.[A-340 Lamps] 8 hrs. U.V. @ 60 deg C./4 hrs condensation @ 50 deg. C)
Width: Up to 144 inches
THESE VALUES ARE TYPICAL DATA AND ARE NOT INTENDED AS LIMITING SPECIFICATIONS.
WARRANTY: All AMT Poly-Plus curtain materials carry a three (3) year prorated warranty for deterioration and/or manufacturers defects only. The basis of failure is a 50% reduction in tear strength or original fabric. The manufacturer’s sole obligation is to replace or repair the defective material per warranty terms. Warranty excludes any and all labor and/or transportation costs. There is no warranty, expressed or implied, as to the percentage of opacity in black, black/white or black/silver material. We do not warrant against pin-hole light spots in black fabrics
