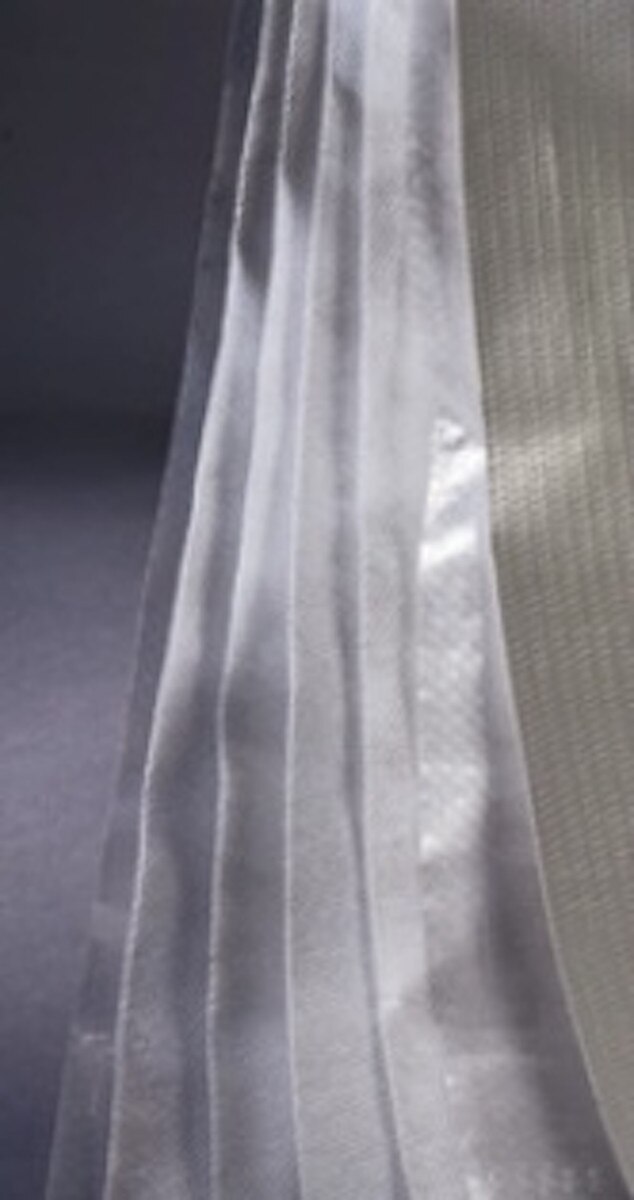

Curtain-7' White 7-Layer Insulated
AMT 7-LAYER INSULATED POULTRY CURTAIN
TYPICAL SPECIFICATIONS
2 Outer Layers: 1 - 5.8 oz White Poly-Plus Curtain 10 x 10 1- 4.4 oz Clear Poly-Plus Curtain 10 x 10
4 Interior Layers : High Tech White Non- Woven Insulating Materials
1 Inner Layer: 1 - 4.4 oz Clear Poly-Plus Vapor Barrier
Total Weight: Approx. 22-26 oz/sq yd
Thickness: Approx. 95 mils
R Value: Estimated at approx. R3**
Light Transmission: Allows approx. 7% diffused light/ $3 shade
** Testing is based on ASTM method D-1518 for Thermal Transmittance of Textile Materials. Tests were done on the Kawabata KES-F7 Thermo-Lab II module. This measures the 1r which is the thermal transmittance through fabric into air. (R-value must be tested with at least a 1" thickness as this is not applicable to this material. R-value can only be calculated through estimates based on these tests).
