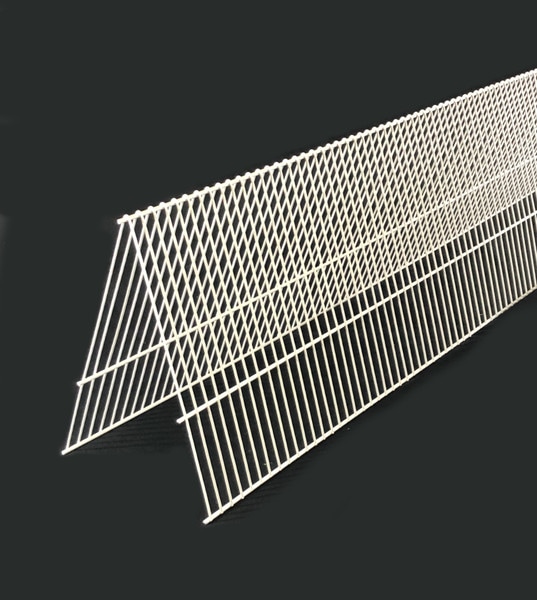

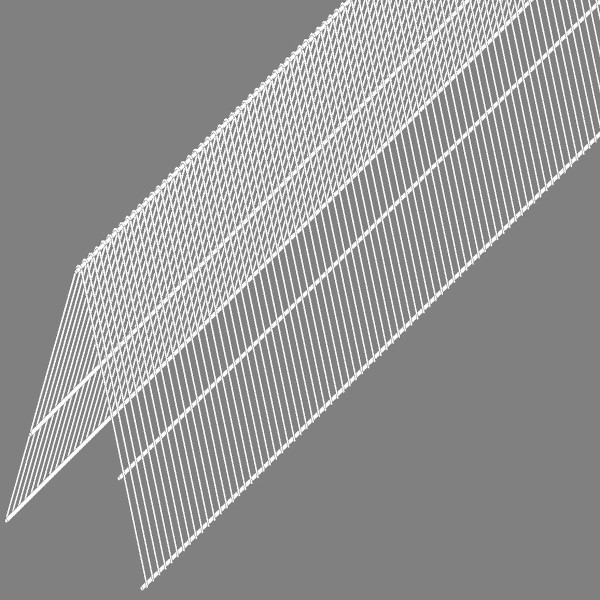

6' Vfence - 12" x 6' (New Size)
• Coating - Epoxy coating is electrostatically applied and then oven cured to provide continuous coverage on all surfaces at 3-5 mils thickness.
• Steel - Grade C 1008 cold drawn steel rod
PSY 100,000 tensile strength. Line wires are .160 in. (4.0 mm) and cross wires are .091 in. (2.3 mm) at a gap distance of .53 in. (13.4 mm).
• Installation - Starting at one side of house, layout lengths overlapping 2”- 4” between sections to lock in. (More than 4” acceptable to avoid cutting and does not reduce ventilation properties). Water/ feed lines– use bolt cutters to cut out vertical wires and top cross wire to drop in water lines.
